Nano Series | Wired Dual Row, Single Ended
2 Row Metal or Plastic Housing, 9, 15, 21, 25, 31, 37, 51 and 65 Positions

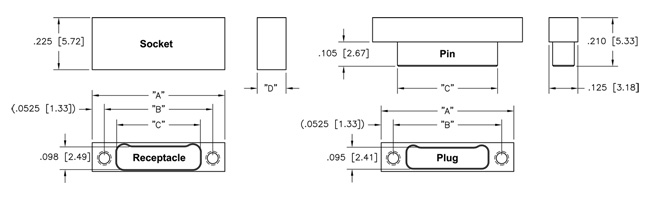

Nano-D Shell Dimensions (inches) [millimeters]
| Size | "A" | "B" | Plug "C" Receptacle | Metal "D" Plastic | |||
| 9 | .375 [9.52] | .270 [6.86] | .160 [4.06] | .163 [4.14] | .125 [3.18] | .130 [3.30] | |
| 15 | .450 [11.43] | .345 [8.76] | .235 [5.97] | .238 [6.04] | .125 [3.18] | .130 [3.30] | |
| 21 | .525 [13.33] | .420 [10.67] | .310 [7.87] | .313 [7.95] | .125 [3.18] | .130 [3.30] | |
| 25 | .575 [14.60] | .470 [11.94] | .360 [9.14] | .363 [9.22] | .125 [3.18] | .130 [3.30] | |
| 31 | .650 [16.51] | .545 [13.84] | .435 [11.05] | .438 [11.12] | .125 [3.18] | .130 [3.30] | |
| 37 | .725 [18.41] | .620 [15.75] | .510 [12.95] | .513 [13.03] | .125 [3.18] | .130 [3.30] | |
| 51 | .900 [22.86] | .795 [20.19] | .685 [17.40] | .688 [17.47] | .125 [3.18] | .130 [3.30] | |
| 65 | 1.075 [27.30] | .970 [24.64] | .860 [21.84] | .863 [21.92] | .125 [3.18] | .130 [3.30] | |
Sales Drawings |
|||||||
 Male Dual Row Wired Plug PDF file |
|||||||
| Female Dual Row Wired Receptacle PDF file |
|||||||
| Female Dual Row Wired Receptable w/Hardware PDF file |
|||||||
CLICK on part number to download .stp file
| 3D Models* | |||||||
| Size | Male | Female | |||||
| 9 | 833311622.STP | 833411627.STP | |||||
| 15 | 833321622.STP | 833421627.STP | |||||
| 21 | 833331622.STP | 833431627.STP | |||||
| 25 | 833341622.STP | 833441627.STP | |||||
| 31 | 833351622.STP | 833451627.STP | |||||
| 37 | 833361622.STP | 833461627.STP | |||||
| 51 | 833371622.STP | 833471627.STP | |||||
| 65 | 833381622.STP | 833481627.STP | |||||
*3D Models are standard Metal Shell profile. Please consult factory for other configurations
| 3D Models** | |||||||
| Size | Female | ||||||
| 9 | 833411622.STP | ||||||
| 15 | 833421622.STP | ||||||
| 21 | 833431622.STP | ||||||
| 25 | 833441622.STP | ||||||
| 31 | 833451622.STP | ||||||
| 37 | 833461622.STP | ||||||
| 51 | 833471622.STP | ||||||
| 65 | 833481622.STP | ||||||
**3D Models are female metal shell versions with captive screws. Please consult factory for other configurations
| Contact Resistance | 0.071 volt maximum drop @ 1.0 amps (.071 ohms) |
|---|---|
| Current Rating | 1.0 Amp Maximum per contact |
| Dielectric Withstanding Voltage | 250 V, RMS, 60 Hz |
| Insulation Resistance | 5,000 Megohms Minimum @ 100 VDC |
Contact Engaging and Separating Forces
5 Ounce Maximum, 0.4 Ounce Minimum
Standard Wire Sizes
#30–#32 AWG
Shock and Vibration
| Vibration | Tested in accordance with EIA–364–28, Condition IV. No Damage or resistance change greater than 10 omhs lasting longer than 10 ns |
|---|---|
| Shock | Tested in accordance with EIA–364–27, Condition G. No Damage or resistence change greater than 10 ns |
| Durability | 200 connector mating cycles tested in accordance with EIA–364–09. No Damage or resistance change greater than 10ohms lasting longer than 10ns |
| Salt Spray | Mated connectors tested in accordance with EIA–364–26, Condition B. No exposure to base metal |
| Humidity | Mated connectors tested in accordance with EIA–364–31, Condition B (except steps 7a and 7b). Meet DWV and IR Requirements |
Materials and Finishes
| Pin & Socket Contacts | Pins: BeCu alloy strip per ASTM–B–194 / Sockets: BeCu per ASTM–B–194 |
|---|---|
| Contacts Plating | Gold plate per ASTM B488, or SAE AMS 2422 |
| Metal Shells | Aluminum with electroless nickel or electrodeposited cadmium plating, Stainless Steel per ASTM A582, Titanium Alloy per MIL–T–81556, Unplated |
| Molded Insulators into Metal housing or Full plastic housing: | Insulating compound per MIL–I–16923. Liquid Crystal Polymer (LCP), per MIL–M–24519 GLCP–30F, 30% Glass |
| Hardware | Corrosion resistant steel per ASTM A 582/A582 or ASTM A 581/A581M, Passivated per SAE AMS–2700 |
