Micro-D Circuit Series | Right Angle .500 x .100 (Style 1)

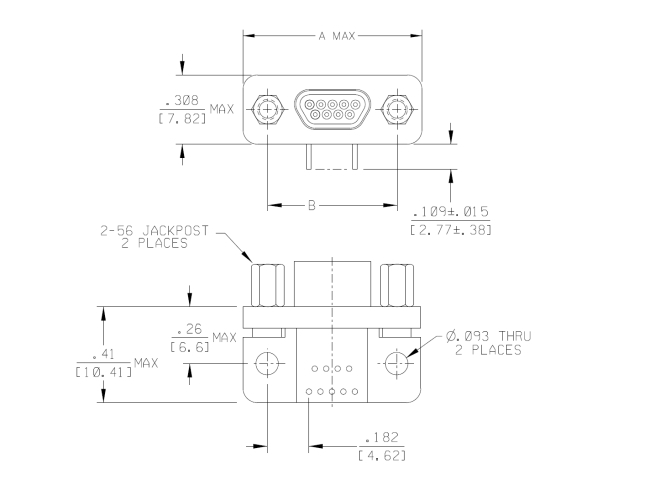

Micro-D Shell Dimensions (inches) [millimeters]

Size A Max. B
9 .785 (19.94) .565 (14.35)
15 .935 (23.75) .715 (18.16)
21 1.085 (27.56) .865 (21.97)
25 1.185 (30.10) .965 (24.51)
31 1.335 (33.91) 1.115 (28.32)
37 1.485 (37.72) 1.265 (32.13)


Sales Drawings

download pdf Male Style 2 Circuits Size(9-37) PDF file

download pdf Female Style 2 Circuits Size(9-37) PDF file

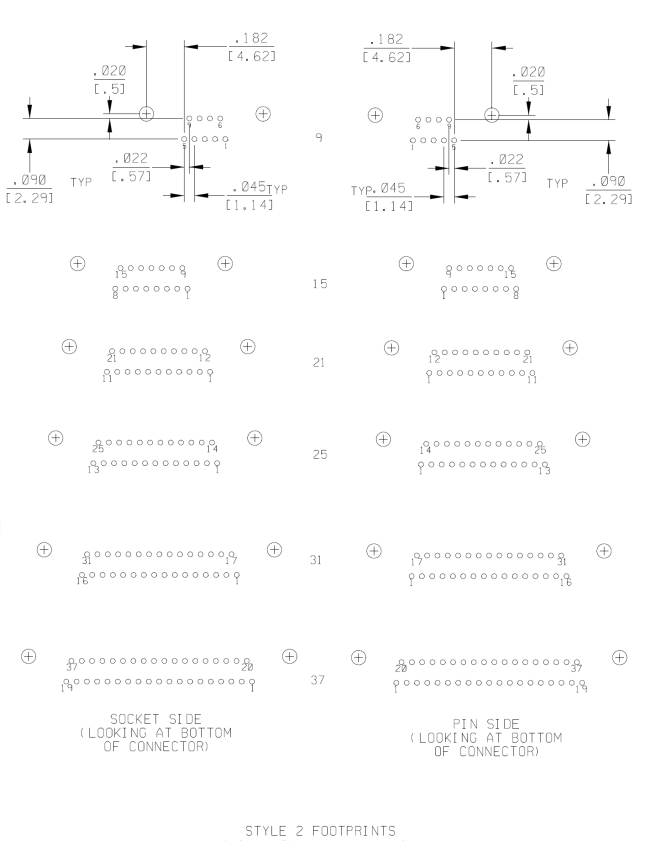

  3D Models* PCB Layouts
Size Male Female Male Female
9 836119045.STP 836219040.STP 836119045PCB.DXF 836219040PCB.DXF
15 836129046.STP 836229023.STP 836129046PCB.DXF 836229023PCB.DXF
21 836139010.STP 836239020.STP 836139010PCB.DXF 836239020PCB.DXF
25 836149038.STP 836249033.STP 836149038PCB.DXF 836249033PCB.DXF
31 836159017.STP 836259035.STP 836159017PCB.DXF 836259035PCB.DXF
37 836169022.STP 836269028.STP 836169022PCB.DXF 836269028PCB.DXF


*3D Models are standard profile with jackposts. Consult factory for other configurations.


Contact Resistance 8 mO Maximum @ 2.5 A
Current Rating 3.0 A Maximum
Dielectric Withstanding Voltage 900 VAC at sea level, 300 VAC @ 70,000 ft. Solder cups and shielded cable same as MIL-DTL-83513; 600 VAC at sea level 150VAC @ 70,000 ft.
Insulation Resistance 5,000 MO Minimum

Contact Engaging and Separating Forces

6 oz. max per MIL-DTL-83513 (contact average is 3 oz.); Separation force is 5.0 oz. minimum.

Contact Mating and Unmating Forces per MIL-DTL-83513

Mate = 10 oz. X number of contacts maximum. Unmate = 10.5 oz. X number of contacts minimum.

Shock and Vibration

Vibration No damage or interruption detected (one microsecond sensitivity) when subjected to Method 2005, Test Condition IV of MIL-STD-1344.
Shock No damage or interruption detected (one microsecond sensitivity) when subjected to Test Condition E. Method 2004 of MIL-STD-1344.
Durability No mechanical defects after 500 matings; Test criteria are mating force, contact resistance, contact engagement, and separation forces.
Salt Spray No exposure of base metal due to corrosion; no loss of performance as in durability above.
Description Mil Spec UMI A Max. B Max.
Jackscrew Lo Allen M83513/05-02 83041xxxx .361 (9.17) .103 (2.62)
Jackscrew Hi Allen M83513/05-03 83041xxxx .868 (22.05) .610 (15.49)
Jackscrew Lo Slot M83513/05-05 83041xxxx .361 (9.17) .103 (2.62)
Jackscrew Hi Slot M83513/05-06 83041xxxx .868 (22.05) .610 (15.49)
Jackpost M83513/05-07 83041xxxx .500 (12.70) .190 (4.83)
Jackscrew Lo Allen M83513/05-12 83041xxxx .390 (9.91) .103 (2.62)
Jackscrew Hi Allen M83513/05-13 83041xxxx .902 (22.91) .610 (15.49)
Jackscrew Lo Slot M83513/05-15 83041xxxx .390 (9.91) .103 (2.62)
Jackscrew Hi Slot M83513/05-16 83041xxxx .902 (22.91) .610 (15.49)
Jackpost M83513/05-17 83041xxxx .500 (12.70) .185 (4.70)



Description Thread Used on Sizes 3D Models
Jackscrew Lo Allen 2-56 UNC-2A   M83513/05-02.STP
Jackscrew Hi Allen 2-56 UNC-2A 9 M83513/05-03.STP
Jackscrew Lo Slot 2-56 UNC-2A through M83513/05-05.STP
Jackscrew Hi Slot 2-56 UNC-2A 51 M83513/05-06.STP
Jackpost 2-56 UNC-2B   M83513/05-07.STP
Jackscrew Lo Allen 4-40 UNC-2A   M83513/05-12.STP
Jackscrew Hi Allen 4-40 UNC-2A   M83513/05-13.STP
Jackscrew Lo Slot 4-40 UNC-2A 100 M83513/05-15.STP
Jackscrew Hi Slot 4-40 UNC-2A   M83513/05-16.STP
Jackpost 4-40 UNC-2B   M83513/05-17.STP



Hardware Diagram

Materials and Finishes

Pin Contacts Beryllium Copper (C17200) per ASTM B194.
Socket Contacts Copper alloy (C21000) per ASTM B36 or leaded commercial bronze (C314000) per ASTM B140.
Contact Plating Gold plated per MIL-DTL-45204D. 50 microinches min. is the standard thickness.
Metal Shells Aluminum alloy per SAE-AMS-QQ-A-200/8, type 6061-T6. Finish is cadmium per SAE-AMS-QQ-P-416, TYPE II, CLASS 3, with suitable underplate with yellow chromate, this plating is not RoHS compliant. Or Finish Electroless Nickel plate per SAE AMS2404, class 3 or 4, .0005 minimum thickness.
Insulator Material Preferred material is Polyphenylene sulfide (PPS) per MIL-M-24519 or ASTM D5927 GST 40F. Color Black.
LCP Liquid Crystal Polymer-Vectra 130 (optional).
Interfacial Seals Fluorosilicone elastomer per MIL-R-25988. Standard on “M” Series socket face.
Hardware Stainless Steel, passivated.



Micro-D Selection Guide

Select the type of rectangular connector you require. Note the “P” series of MIL-DTL-83513 is not designed to mate with the MIL-DTL-83513 “M” series. The “M” series mates with its dimensional plastic version “B”. The “A” series mates with its dimensional plastic version “P”.

connector mating diagram

Micro-D Dimensional Data

A, P, M, and B Series 50 mil Rectangular Connectors, P and M series are in accordance with MIL-DTL-83513

style diagram
