SPI Connects - Military & Industrial Connectors

SPI Connect specializes in mil spec connector applications; industrial automation, power distribution, instrumentation, robotics, cellular/communication towers, alternative energy, oil & gas and our specialty, custom engineered interconnect solutions.

AS85049 Backshells

SPI-Connects' line of M85049 QPL backshells are made to integrate with D38999 I, II, III, IV, 26482 II, 5015 Crimp, 81703 III, & 83723 III connectors. They come in a variety of plating types, including some RoHS compliant finishes. Custom versions are also produced.

Current QPL Part Numbers
M85049/14	M85049/17	M85049/18	M85049/19
M85049/20	M85049/26	M85049/27	M85049/31
M85049/33	M85049/38	M85049/49-2	M85049/52
M85049/60	M85049/62	M85049/69	M85049/82
M85049/83	M85049/84	M85049/85	M85049/86
M85049/87	M85049/88	M85049/89	M85049/90

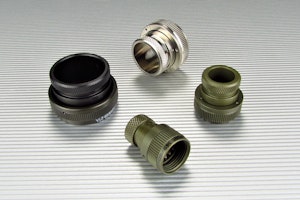

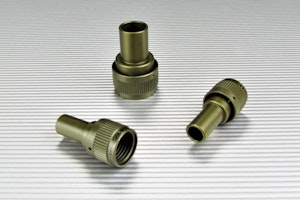

QPL Approved family of AS85049 Mil-Spec backshells Manufactured to the AS85049 specifications and come in a full range of plating types including RoHS compliant finishes.
Straight, Environmental, Non-Environmental, Strain Relief, RFI/EMI Includes AS85049/17, 18, /19	Straight, Non-Environmental, Self & Non-Self Locking Includes: AS85049/14, /27, /31
Straight, Non-Environmental, Shield Termination (EMI/RFI) Includes: AS85049/20, /26, /33	Straight, Non-Environmental, Strain Relief, Self & Non-Self Locking Includes: AS85049/38, /49, /52
Straight, Shrink Boot Adapter Includes: AS85049/60, /62, /69	Straight, 45° & 90° Shield Band Termination (EMI/RFI), Shrink Sleeve Accommodation, Self-Locking Includes: AS85049/82, /85, /88, /83, /86, /89, /84, /87, /90

MIL-DTL 26482 Series I Connectors

MIL-DTL-26482, Series I is a compact bayonet coupling style connector family offering high density contact arrangements in a rugged light-weight circular aluminum shell. These connectors come in a variety of styles which are both intermateable and intermountable with all series 26482 circular connectors.

Ideally suited for Military applications and harsh environments, these connectors have also found wide acceptance in industrial applications due to their proven reliability. They are moisture resistant and operate in a temperature range from -67°F to +257°F (-55°C to +125°C)
